Product Designation | Description | Typical Application/Benefit | Application Method | Electrical Resistance | |

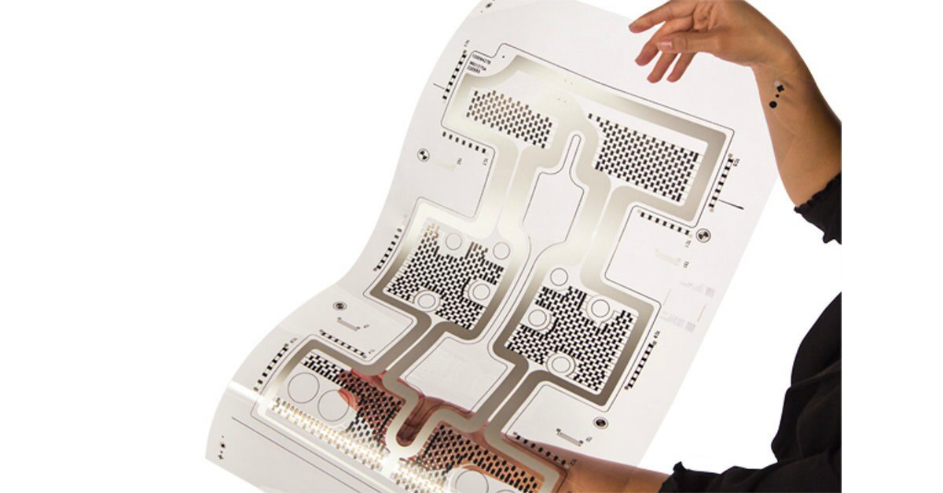

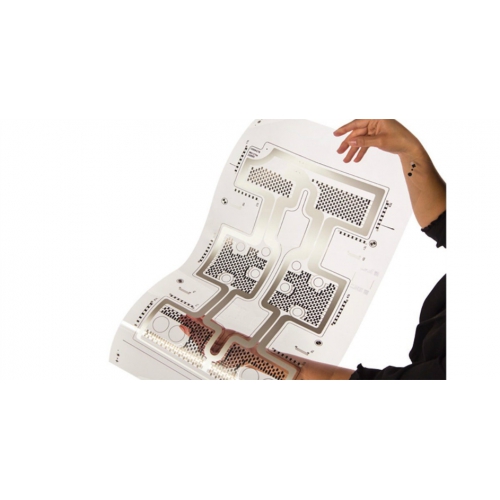

| Silver Circuit Traces | |||||
CI-1001 | Silver-vinyl | PET film circuitry/ low cost | Screen Print | < 0.015 | |
CI-1036 | Silver-urethane, durable, low ? | PET film or soft substrates/ creasable, stretchable | Screen Print | < 0.010 | |
CI-1091 | Silver-epoxy | PET film circuitry/ halogen-free | Screen Print | < 0.020 | |
CI-1028 | Silver-polyester | PET film circuitry/ low temp/fast dry, fine line | Screen Print | < 0.020 | |
| Carbon Resistors, Contact Pads | |||||
CI-2001 | Carbon-vinyl | Top coat contact pads/blend with CI-1001 | Screen Print | < 20 | |
CI-2069 Series | Carbon-epoxy | Printed resistors/ stable linear ?, halogen-free | Screen Print | 100 | |
CI-2042 | Carbon-vinyl | Printed top-coat, jumpers/low ? | Screen Print | < 10 | |
CI-5001 | Nickel-vinyl | Printed top-coat, jumpers/low ?, abrasion resistant | Screen Print | < 10 | |
| Dielectric Insulators | |||||
DI-7502 | Dielectric, UV cure | Protect CI-1001 and build jumper path, low stress, excellent adhesion | Screen Print | >1,000 Mega ? | |
DI-7542 | Dielectric, UV Cure | Protect CI-1036 on PET, build jumper path, durable, creasable | Screen Print | >1,000 Mega ? | |
DI-7548 | Dielectric, UV Cure | Protect CI-1036 on PET or stretch film, build jumper, stretchable | Screen Print | >100 Mega ? | |
| Surface Mount Technology | |||||
CA-188-2 | SMT Ag epoxy, one-part | Attach SMD/fast low temp cure | Needle or jet | 0.0007 ?-cm | |
UF-1571 | SMT staking compound | Attach SMD/ compatible with CA-188-2 | Needle or jet | >1,000 Mega ? | |
DB-1561 | SMT Ag epoxy, two-part | Attach SMD/low temp cure, fine needle dispense | Needle | 0.003 ?-cm | |
UF-9526 | SMT staking compound | Attach SMD/ compatible with DB-1561 | Needle | >1,000 Mega ? | |
EC-9519 | SMT encapsulant, UV cure | Protect SMT joint/PET or PC adhesion, low stress | Needle or jet | >1,000 Mega ? | |
| Novel Materials | |||||
DI-7801 | Pressure sensitive adhesive, UV cure | Printed PSA on PET or PC film/high peel strength, clear | Screen Print | >1,000 Mega ? | |
DI-7506 | Printed spacer, UV cure | Thick film built on PET film/circuitry insulation | Screen Print | >1,000 Mega ? | |
CI-1093 | Silver-epoxy for ITO film | ITO-sputtered film/excellent adhesion and stress compatible | Screen Print | <0.020 | |
